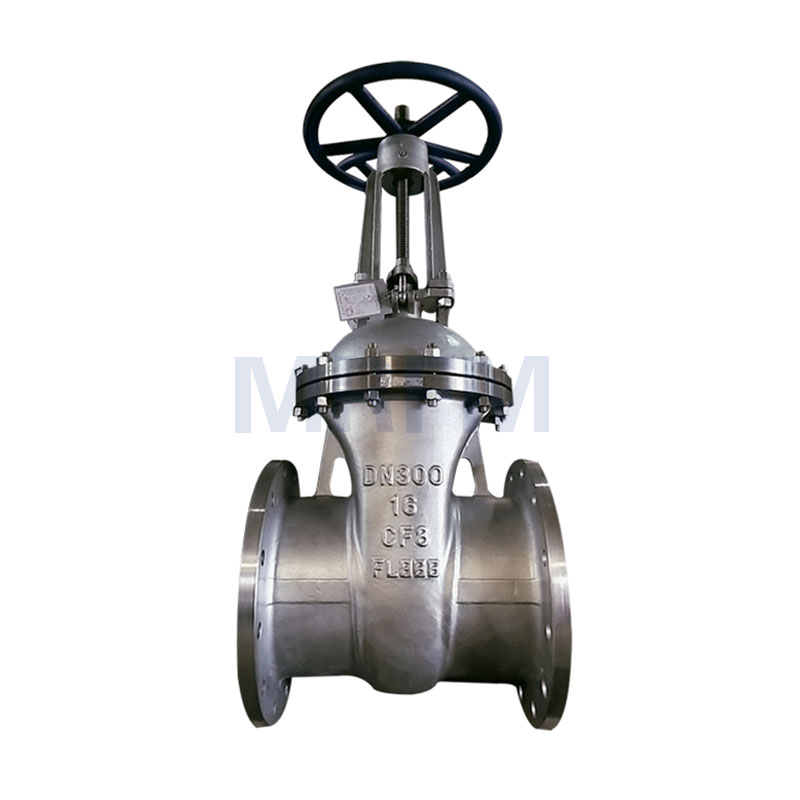

DIN Gate Valve

A DIN gate valve refers to a gate valve that conforms to the DIN (Deutsches Institut für Normung) standard, which is a German standardization organization responsible for setting technical standards in various industries. A gate valve is a type of valve used to control the flow of fluids (liquids or gases) by using a sliding gate or wedge that moves across the flow path.

Here are some characteristics of a DIN gate valve:

Design: DIN gate valves are designed according to the specifications outlined in the DIN standard. The standard specifies dimensions, materials, pressure ratings, and other technical details to ensure compatibility and interchangeability of valves within the DIN system.

Size and Pressure Ratings: DIN gate valves are available in various sizes, ranging from small sizes suitable for residential or commercial applications to large sizes for industrial applications. The pressure ratings of DIN gate valves can vary, depending on the specific design and intended use. DIN standards provide guidelines for pressure ratings based on the valve's size, materials, and application requirements.

Materials: DIN gate valves are commonly made from materials such as cast iron, ductile iron, carbon steel, stainless steel, or bronze, depending on the intended application and the fluid being handled. The choice of material is based on factors like compatibility with the fluid, temperature, pressure, and corrosion resistance requirements.

Operation: Gate valves are typically operated by a handwheel or actuator that moves the gate (wedge) up and down to control the flow of fluid. When the gate is fully raised, the valve is fully open, allowing maximum flow. Conversely, when the gate is fully lowered, the valve is closed, blocking the flow completely.

Applications: DIN gate valves are used in a wide range of applications across various industries, including water supply systems, oil and gas pipelines, chemical plants, power generation, wastewater treatment, and industrial processes. They are commonly used in situations that require full flow or shut-off control, rather than throttling control.

It's important to consult the specific DIN standard (e.g., DIN 3352) or the manufacturer's documentation for detailed information about a particular DIN gate valve. This will provide you with specific details regarding dimensions, materials, pressure ratings, installation requirements, and any additional features or certifications the valve may have.
