The concept and function of Engraving Machine Milling Cutter

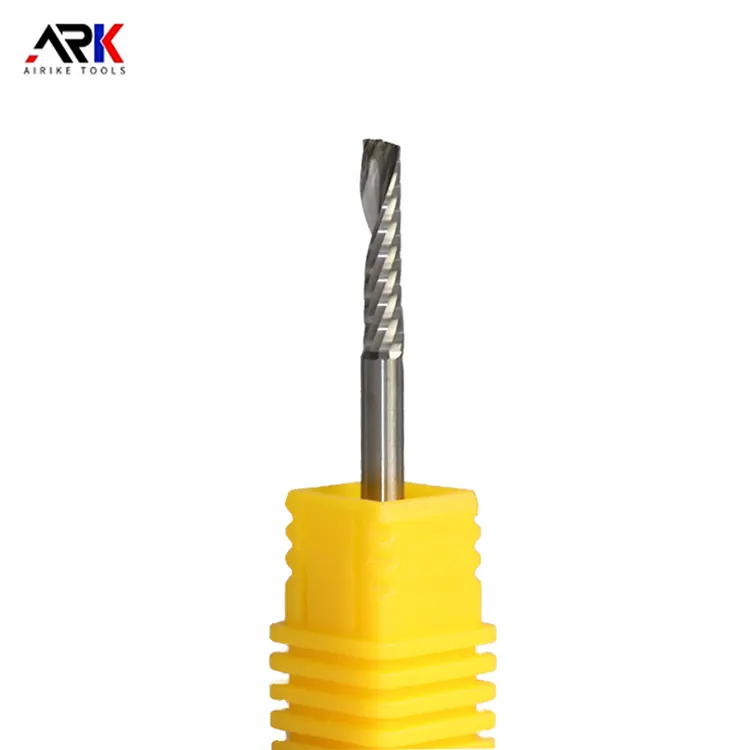

An engraving machine milling cutter is a specialized cutting tool used in CNC (Computer Numerical Control) engraving and milling machines. It is designed to carve, cut, or shape material surfaces with high precision, typically used for engraving text, patterns, or detailed designs onto workpieces made from materials like metal, plastic, wood, or glass.

The cutter itself is often made from carbide, high-speed steel (HSS), or diamond-coated materials, depending on the material being engraved and the level of precision required.

Functions

Precision Cutting: Engraving cutters are designed to perform detailed and accurate cuts, which is essential for fine patterns, small fonts, or intricate logos.

Surface Engraving: They engrave flat or slightly curved surfaces with controlled depth and detail, ideal for nameplates, signage, and decorative items.

Material Removal: In milling operations, the cutter removes small amounts of material to create grooves or recesses in the workpiece surface.

Profiling and 3D Carving: Some advanced engraving cutters can create 3D reliefs or contours, used in mold making and artistic engraving.

Versatility: Depending on the shape of the cutter (e.g., V-bit, ball-nose, flat-end), it can be used for different applications such as outlining, filling, or detailed texture creation.

Types of Engraving Cutters

V-bit (engraving bit): Ideal for fine lines and detail work.

Ball-nose end mill: Used for 3D carving and contouring.

Flat end mill: Suitable for surface clearing and deeper engraving.

Tapered cutter: Offers strength and precision for deep and narrow engraving.
