Exploring the Versatile Sleeve Anchor with Hex Bolt and Conical Nut

In the realm of construction and structural engineering, fastening solutions play a crucial role in ensuring the stability and integrity of various installations. One such versatile fastening option is the Sleeve Anchor with Hex Bolt and Conical Nut. Let's delve into what exactly this anchor is, how it works, and its applications in the construction industry.

Understanding Sleeve Anchor with Hex Bolt and Conical Nut

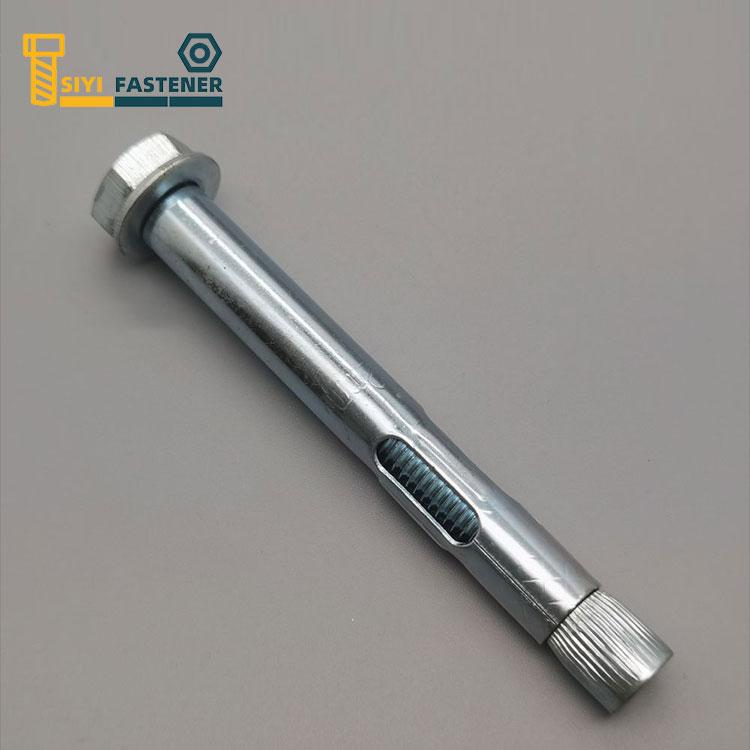

A Sleeve Anchor with Hex Bolt and Conical Nut is a type of mechanical anchor used to secure objects to concrete, brick, or other solid materials. It consists of several key components:

- Sleeve: The main body of the anchor, typically made of steel, with a hollow cylindrical shape.

- Hex Bolt: A threaded bolt inserted through the center of the sleeve, used to fasten the object to be anchored.

- Conical Nut: A specialized nut with a tapered shape that fits inside the sleeve and expands when tightened, creating a secure grip within the base material.

How it Works

The installation process of a Sleeve Anchor with Hex Bolt and Conical Nut is relatively straightforward:

1. Drilling: A hole is drilled into the base material to accommodate the anchor. The diameter of the hole is typically slightly larger than the outer diameter of the sleeve.

2. Insertion: The sleeve anchor is inserted into the drilled hole, and the hex bolt is threaded through the object to be anchored.

3. Tightening: As the hex bolt is tightened, it pulls the conical nut into the sleeve, causing the nut to expand and press against the walls of the hole. This expansion creates a wedging action that secures the anchor firmly in place.

4. Final Adjustment: Once the anchor is fully tightened, any excess bolt length can be cut off, and the installation is complete.

Applications

The Sleeve Anchor with Hex Bolt and Conical Nut is widely used in various construction and industrial applications, including:

- Securing Structural Components: Anchoring structural steel beams, columns, and supports to concrete or masonry surfaces.

- Installing Fixtures and Equipment: Mounting machinery, equipment, shelving, and signage to walls or floors.

- Attaching Handrails and Guardrails: Securing handrails and guardrails for staircases, walkways, and balconies.

- Anchoring Fences and Railings: Installing fence posts and railings in concrete footings or retaining walls.

Advantages

- Versatility: Suitable for use in a wide range of base materials, including concrete, brick, and stone.

- Ease of Installation: Simple and quick to install, requiring only basic tools.

- High Load Capacity: Provides strong and reliable anchoring for heavy loads and structural elements.

- Adjustability: Allows for easy adjustment or removal of the anchored object if necessary.

Conclusion

The Sleeve Anchor with Hex Bolt and Conical Nut is a reliable and versatile fastening solution that offers strength, stability, and ease of installation. Whether anchoring structural components, installing fixtures, or securing railings, this anchor provides a dependable means of attachment in various construction and industrial settings. With its simple yet effective design, the Sleeve Anchor with Hex Bolt and Conical Nut continues to be a valuable asset in the toolkit of builders, contractors, and engineers worldwide.
