A Complete Guide to Flange Insulation Gasket Kits: Corrosion Control with Confidence

Corrosion is a costly and persistent challenge in industries where pipelines are exposed to harsh environments. Whether it's in oil and gas, chemical processing, water treatment, or refinery systems, protecting pipeline connections is critical for long-term performance and safety. That’s where the Flange Insulation Gasket Kit comes in—a proven and widely adopted solution for controlling corrosion-related losses and enhancing pipeline integrity.

Why Use a Flange Insulation Gasket Kit?

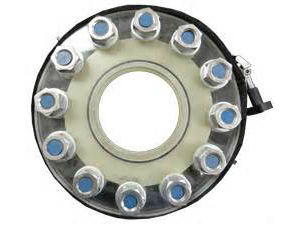

A Flange Insulation Gasket Kit is specifically designed to prevent electrochemical corrosion between connected flanges by electrically isolating them. This not only enhances the effectiveness of cathodic protection systems, but also helps contain stray currents and limit galvanic reaction, which can otherwise deteriorate metal surfaces over time. Industries that deal with volatile or corrosive fluids—such as oil and gas pipelines, chemical facilities, and water systems—rely on these kits to maintain pipeline reliability and reduce maintenance costs.

Types of Gaskets for Different Applications

Choosing the right gasket type is essential for ensuring a tight seal and effective insulation. Flange Insulation Gasket Kits are available in several configurations, each suited to a specific flange face design:

1. Type E Gasket: Designed to provide full face coverage of the flange, offering maximum sealing and protection against moisture ingress.

2. Type F Gasket: Engineered to fit only the raised face surface of the flange. It’s a more targeted sealing option, ideal for applications that don’t require full face coverage.

3. Type D Gasket: Built to fit ring grooves on ring-type joint (RTJ) flanges. This type is typically used in high-pressure systems.

4. Seal Type O: Combines a gasket and O-ring to maintain continuous contact with the flange face. It delivers superior sealing performance, especially in demanding or high-pressure environments.

These gasket types are available in a range of materials to suit various temperature, pressure, and chemical conditions.

A Small Investment for Long-Term Protection

Corrosion is an inevitable threat in industrial systems, but it doesn’t have to be a costly one. Flange Insulation Gasket Kits offer a reliable, low-maintenance solution that safeguards infrastructure and minimizes repair costs over time. By isolating critical flange joints and enhancing cathodic protection, these kits serve as an essential line of defense in high-risk environments.
