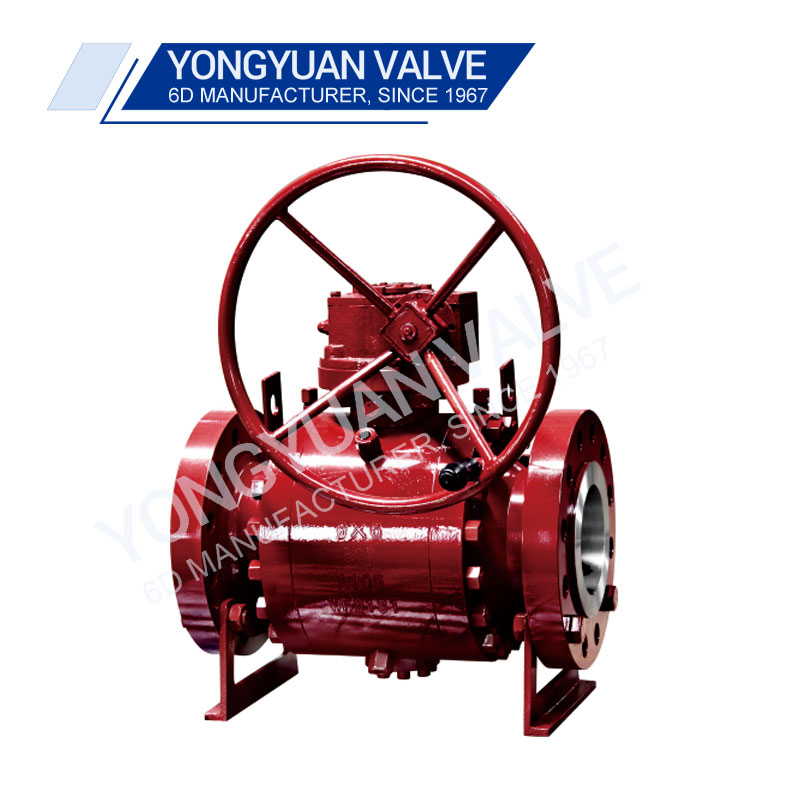

What is an API 6D 3-Piece Trunnion Ball Valve?

An API 6D 3-Piece Trunnion Ball Valve is a specific type of industrial valve designed to control the flow of fluid (liquid or gas) in a pipeline. It belongs to the family of ball valves and is constructed according to the standards set by the American Petroleum Institute (API) in API 6D. This standard outlines the requirements for pipeline valves used in the petroleum and natural gas industries.

Key features of an API 6D 3-Piece Trunnion Ball Valve include:

1. Trunnion-Mounted Ball: The ball inside the valve is supported by a trunnion or stem, which prevents excessive ball movement, ensuring better alignment and sealing even under high-pressure conditions.

2. 3-Piece Construction: The valve body is assembled in three main pieces, which allows for easier maintenance and repair. The center section containing the ball is removable without the need to disconnect the valve from the pipeline.

3. Full and Reduced Bore Options: API 6D 3-Piece Trunnion Ball Valves are available in both full and reduced bore configurations. Full bore valves have a larger ball opening, allowing for minimal pressure drop and increased flow capacity, while reduced bore valves have a smaller ball opening, reducing the flow capacity but offering lower cost and weight.

4. Bi-Directional Sealing: These valves are designed to provide a bidirectional sealing capability, meaning they can block flow in either direction.

5. High-Pressure and High-Temperature Applications: API 6D 3-Piece Trunnion Ball Valves are commonly used in applications where high-pressure and high-temperature conditions are encountered.

6. Fire-Safe Design: Many API 6D 3-Piece Trunnion Ball Valves are designed to meet fire-safe requirements, ensuring that they can maintain their functionality and prevent fluid leakage in case of a fire.

7. Various End Connections: They are available with different end connections, such as flanged, welded, or threaded, to facilitate installation and connection to the pipeline.

API 6D 3-Piece Trunnion Ball Valves are widely used in the oil and gas industry, petrochemical plants, refineries, power plants, and other critical applications where reliable and safe flow control is essential. They are known for their robust construction, excellent sealing performance, and ability to handle demanding operating conditions. Properly selected, installed, and maintained, these valves offer reliable and long-lasting service in various industrial processes.
